What are the dimensions of the WD Hitch rack for product 3351 and 3353?

Below are the specs and ball heights for the 3351 & 3353 WD racks. Click to enlarge the images

4" WD Rack Specs (part #3353)

Drop Position

4" WD Rack Specs (part #3353)

Ball Heights


8" WD Rack Specs

Ball Heights

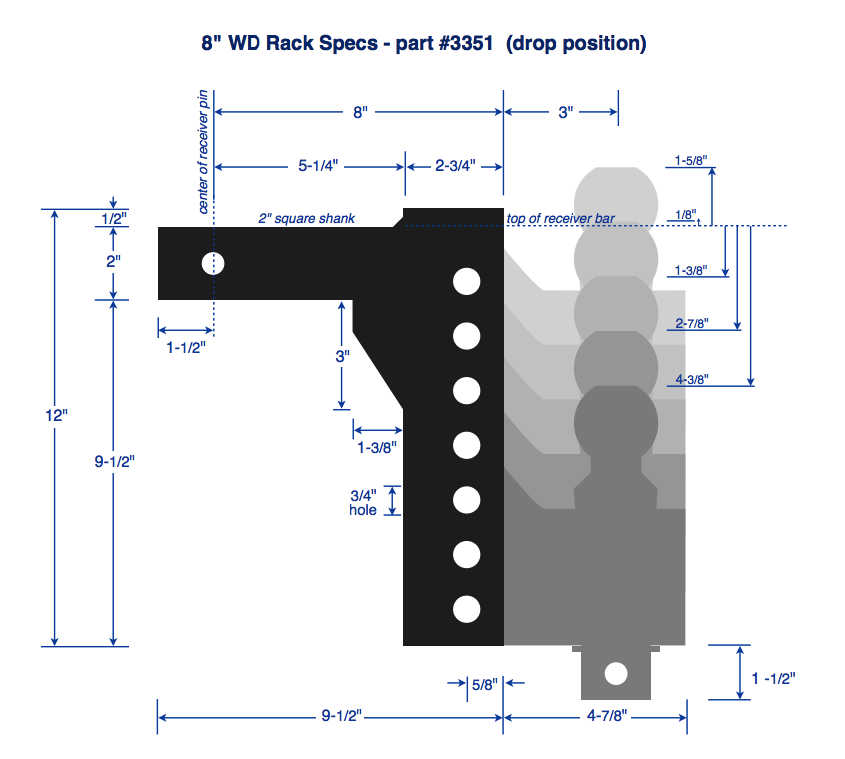

8" WD Rack Specs

Drop Position
