1. Getting Started

Our weight distribution kits offer a first in the industry, giving trailer owners the best anti-sway and anti-bounce with the only true Motion-Dampening™ system around. Weighing in under 60 lbs, this good-looking but tough workhorse is rated up to 16,000 lbs GTWR (1,500 lbs tongue). That means it can handle all of your heavy-duty trailer needs.

To determine which version of the Weight Distribution Hitch is most compatible with a truck and trailer setup, you will need to consider:

Ball Housing (ball size)
Adjustable Rack (drop rack and shank size)
Tongue Bracket Set (bracket size for the trailer frame).

2. WD Hitch FITment Guide & Parts

To help you figure out what size you need of each part, take a look at our fitment guide and or use our WD Hitch Compatibility Form.

Fitment Guide

WD Hitch Compatibility

+ More Info

2” Ball Weight Rating: 10,000 lbs GTWR

2-5/16” Ball Weight Rating: 14,000 lbs GTWR

2-5/16” (16K) Ball Weight Rating: 16,000 lbs GTWR (when paired with an adjustable rack with a 2-1/2” or 3” shank/receiver)

See Dimensions

3353_EZ_HD_4-in_drop_2-in_shank_RACK_angled_1024x1024.jpeg — 4” Adjustable Drop Rack

Choosing Drop & Shank Size

+ More Info

The 4" Adjustable Rack is available in a 2", 2-1/2", & 3" shank/receiver. The shank size effects can the weight rating of the hitch, depending on the ball size.

See Dimensions

3351_EZ_HD_8-in_drop_2-in_shank_RACK_angled_1024x1024.jpeg — 8” Adjustable Drop Rack

Choosing Drop & Shank Size

+ More Info

The 8" Adjustable Rack is available in a 2", 2-1/2", & 3" shank/receiver. The shank size effects can the weight rating of the hitch, depending on the ball size.

See Dimensions

+ More Info

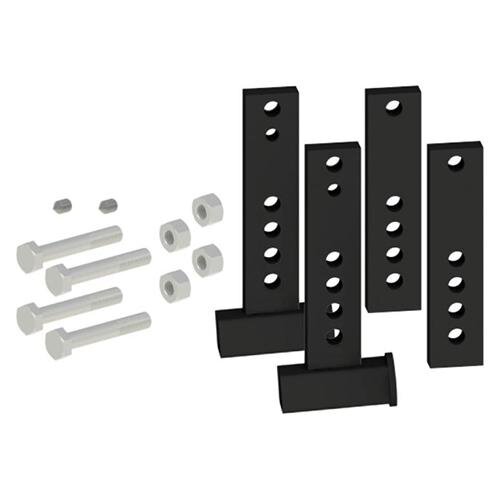

The WD Hitch works on a variety of trailer styles (A-Frame, V-Frame, & Y-Frame). Each WD Kit is available in these frame sizes: 3”, 4”, 4-3/8”, 5”, 6”, 7”, & 8”. We also have special brackets for under-slung couplers and low trailer frames.

See Dimensions

3. CHoosing a WD Hitch Kit

Once you have your shank size, ball size, drop/rise, and bracket size, you can look at our available 4” Drop and 8” Drop Weight Distribution Hitch Kits.

If you have more questions about the Weight Distribution Hitch, check out our WD Hitch Installation page and FAQ page.

See Product

Check Compatibility

WD 4 inch drop.jpg — 4” Drop/Rise Weight Distribution Hitch

Available in different size ball, shank, & frame sizes

+ More Info

Part # 3324 Weight Rating: 10K lbs GTWR
2" Ball, 2" Shank, 3" 4" 5" 6" Brackets

Part # 3343 Weight Rating: 10K lbs GTWR
2" Ball, 2" Shank, 4-3/8" Brackets

Part # 3344 Weight Rating: 14K lbs GTWR
2-5/16" Ball, 2" Shank, 4-3/8" Brackets

Part # 3350 Weight Rating: 14K lbs GTWR
2-5/16" Ball, 2" Shank, 3" 4" 5" 6" Brackets

Part # 3385 Weight Rating: 14K lbs GTWR
2-5/16" Ball, 2" Shank, 7" 8" Brackets

Part # 3394 Weight Rating: 16K lbs GTWR
2-5/16" Ball, 2-1/2" Shank, 3" 4" 5" 6" Brackets

Part # 3394.3 Weight Rating: 16K lbs GTWR
2-5/16" Ball, 3" Shank, 3" 4" 5" 6" Brackets

WD 8 inch drop.jpg — 8” Drop/Rise Weight Distribution Hitch

Available in different size ball, shank, & frame sizes

+ More Info

Part # 3326 Weight Rating: 10K lbs GTWR
2" Ball, 2" Shank, 3" 4" 5" 6" Brackets

Part # 3347 Weight Rating: 10K lbs GTWR
2" Ball, 2" Shank, 4-3/8" Brackets

Part # 3348 Weight Rating: 14K lbs GTWR
2-5/16" Ball, 2" Shank, 4-3/8" Brackets

Part # 3380 Weight Rating: 14K lbs GTWR
2-5/16" Ball, 2" Shank, 3" 4" 5" 6" Brackets

Part # 3386 Weight Rating: 14K lbs GTWR
2-5/16" Ball, 2" Shank, 7" 8" Brackets

Part # 3398 Weight Rating: 16K lbs GTWR
2-5/16" Ball, 2-1/2" Shank, 3" 4" 5" 6" Brackets

Part # 3398.3 Weight Rating: 16K lbs GTWR
2-5/16" Ball, 3" Shank, 3" 4" 5" 6" Brackets

4. Adding TRailer Accessories

We have designed travel trailer accessories to help with stabilization, leveling, and even tire changing. You will find these to be helpful tools for your travel trailer.
